Product Description:

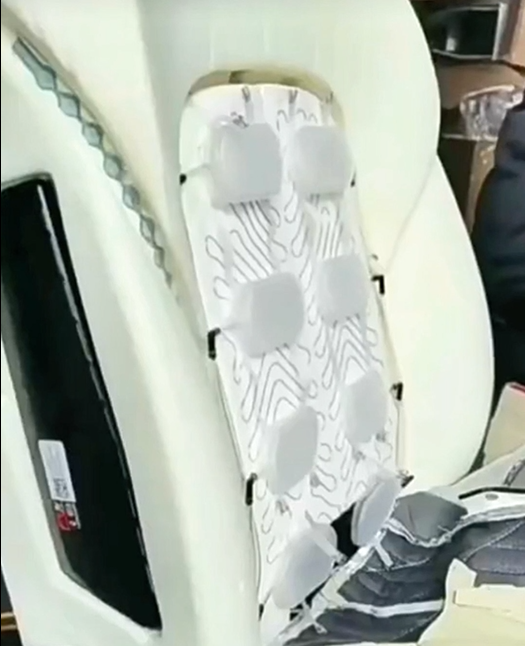

XG2592 Series is a Polyether based TPU film specifically developed for automotive seat assemblies and aftermarket manufacturers, designed for Dynamic lumbar support systems in Car Seats.
Key Features:
Outstanding mechanical properties with high pressure resistance
Excellent weather resistance and low-temperature performance
Superior aging resistance, yellowing resistance (Grade 4)
Ultra-low VOC emissions and minimal odor
Good flame retardant and self-extinguishing properties
Suitable for high-frequency processing
Specification Description:
Width Option: 190mm, 230mm, 248mm, 248mm, 280mm,700mm,710mm can be customized
Thickness Option: 0.38mm, 0.45mm, 0.48mm, 0.50mm, 0.55mm, 0.58mm can be customized
Color: Natural (reduces reflections and glare, ideal for hiding internal components)
BASIC PHYSICAL PERFORMANCE:
Test Item | TEST METHOD | UNIT | XG2592 T24101012 | |
Tensile Strength | ASTM D412/Die C | MPa | CD | 61.13 |
MD | 61.54 | |||
100% Modulus | ASTM D412/Die C | MPa | CD | 8.15 |
MD | 8.38 | |||
300% Modulus | ASTM D412/Die C | MPa | CD | 18.95 |
MD | 21.07 | |||
Elongation | ASTM D412/Die C | % | CD | 508 |
MD | 488 | |||
Tear Strength | ASTM D624 | KN/m | CD | 109.62 |
MD | 105.22 | |||
Thickness | ASTM D3767 | mm | - | 0.38 |
Haze | ASTM D1003 | % | - | 88.63 |
Light transmittance | ASTM D1003 | % | - | 88.07 |
Hardness | ASTM D2240 | Shore A | - | 92 |
Density | ASTM D792 | g/cm3 | - | 1.14 |
Color | Visual | / | - | Natural |
COF A-A | GB/T1006-1988 | / | μs | 0.48 |
μd | 0.47 | |||
COF A-B | GB/T1006-1988 | / | μs | 0.25 |
μd | 0.25 | |||
COF B-B | GB/T1006-1988 | / | μs | 0.56 |
μd | 0.50 |
